CNC Secrets: A Guide to Precision Metal Machining

In Brief

CNC machining is a subtractive manufacturing process where a computer controls cutting tools that remove raw material from a solid block to create a precise final shape. The technology is primarily divided into two types: Milling, used to create complex geometric shapes and flat surfaces, and Turning, primarily intended for cylindrical and symmetrical parts. The precision achieved in these processes is measured in microns and enables uniform, high-quality serial production.

Material selection is critical to project success, with the two most common aluminum alloys being 6061 and 7075. While Aluminum 6061 offers an excellent balance of strength, corrosion resistance, and reasonable cost, Aluminum 7075 provides tremendous strength comparable to certain steels but at a higher price and with low weldability. Understanding these nuances, alongside proper tolerance specification and appropriate finishes, is what distinguishes an amateur prototype from a leading industrial product.

The process from an abstract idea to a finished physical product is fraught with technological and engineering challenges, but one of the most critical stages in this chain is the manufacturing phase. In an era where precision is the name of the game and quality is a prerequisite for market entry, CNC (Computer Numerical Control) technology forms the backbone of modern industry. For entrepreneurs, engineers, and product designers, understanding how to transform a block of metal into a precise, functional part is the key to business success. In this guide, we'll explore in detail into the world of CNC machining, understand the subtle differences between raw materials, and reveal how the right choice of manufacturing technique and finish can save a fortune and improve your product to the next level.

The Beating Heart of Manufacturing: Milling vs. Turning

When we set out to manufacture a metal part, the first question we must answer is which technology will best serve our purpose. The CNC world is based on two primary techniques that, despite sharing the same principle of material removal, operate in fundamentally different ways.

CNC Milling

In milling, the raw material remains fixed to the work table while the cutting tool (mill) rotates at high speed and moves along different axes (X, Y, Z, and sometimes additional axes) to remove material. This method is ideal for creating non-symmetrical shapes, grooves, complex bores, and flat surfaces. Modern milling machines can move along 5 axes simultaneously, enabling the production of highly complex geometries in a single operation without the need for re-fixturing.

CNC Turning

Unlike milling, in turning the raw material is what rotates at high speed, while the cutting tool (blade) moves linearly against the rotating material. This process is primarily used for manufacturing cylindrical parts, tubes, screws, and shafts. Turning is very efficient and fast for producing parts with rotational symmetry.

The choice between milling and turning isn't always binary. Many parts require a combination of both - for example, a shaft created by turning that also requires a lateral bore made by milling. As a company specializing in prototype development, we at ATI frequently encounter the need to combine technologies to achieve the perfect result.

Battle of the Metals: Aluminum 6061 vs. 7075

One of the most common mistakes in product development is treating "aluminum" as a uniform material. In reality, numerous alloys exist, with the two dominating the industry being 6061 and 7075. The difference between them can be the difference between a product that fails under load and one that lasts for years, or between a profitable project and an outrageously expensive one.

Aluminum 6061: The Industry Workhorse

This alloy primarily contains magnesium and silicon. It's considered the "bread and butter" of CNC machining. It's easy to machine, has excellent corrosion resistance, and can be readily welded. Most machine parts, bicycle frames, and general automotive components are manufactured from 6061. Its great advantage is cost - it's significantly cheaper than aerospace-grade alloys.

Aluminum 7075: The Aerospace Choice

Here, the primary element in the alloy is zinc. The result is an exceptionally strong material, sometimes as strong as certain types of steel, but at aluminum's weight. The primary use is in the aerospace industry, mountain climbing equipment, and machine parts subjected to particularly heavy loads. The downsides: lower corrosion resistance (without coating), great difficulty in welding, and a significantly higher price.

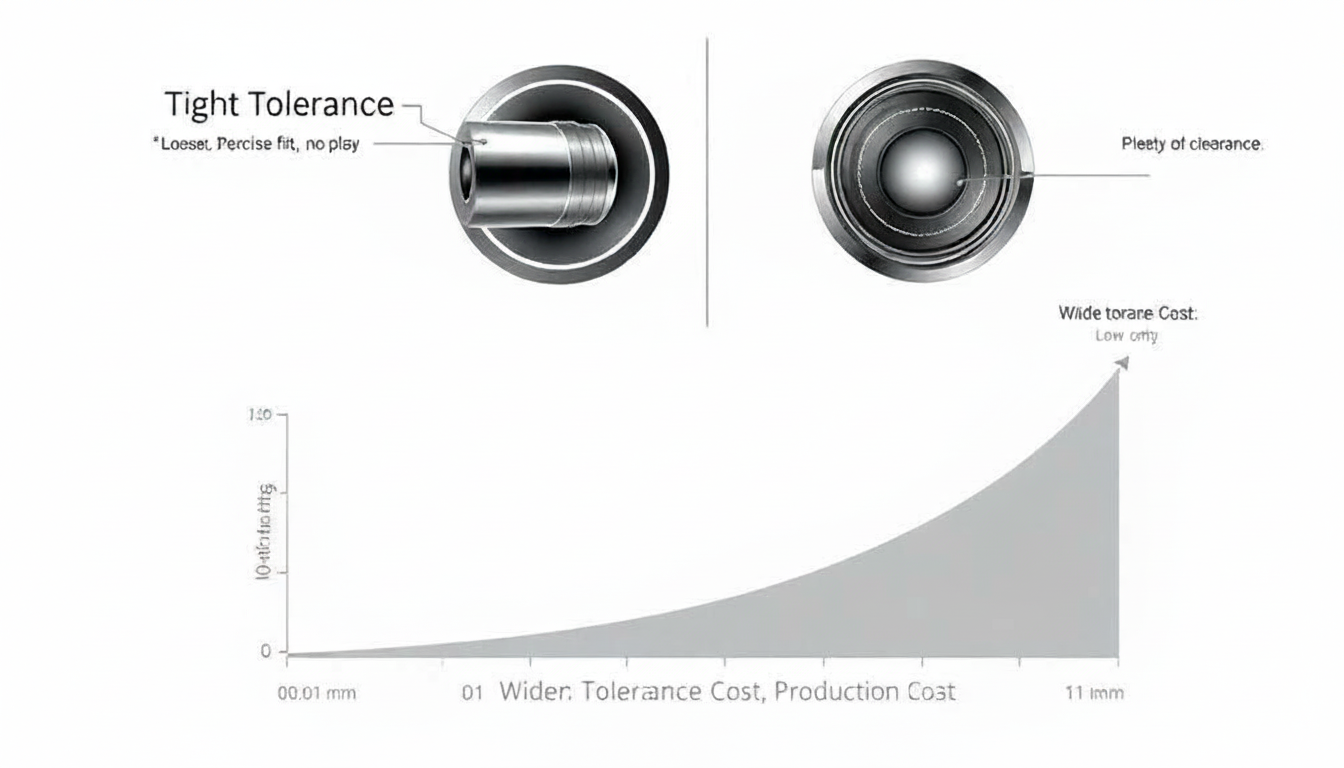

Tolerances: The Price of Precision

The term "tolerance" refers to the permissible deviation from the nominal designed dimension. No machine in the world manufactures with absolute precision; there is always a minimal deviation. The question is how critical this deviation is for your product. ISO 2768 is the common standard defining general tolerances for CNC machining.

The tighter the tolerance (e.g., ±0.005 mm versus ±0.1 mm), the higher the manufacturing cost. This is due to the need for more precise equipment, slower work speeds, more rigorous quality control, and higher scrap rates. The wisdom lies in specifying tight tolerances only where functionally necessary (such as for bearings), and leaving more open tolerances elsewhere to save costs.

Finishes: The Face of the Product

After the part comes off the CNC machine, it's usually not ready for market. The surface may show tool marks and requires further treatment. The choice of finish affects not only aesthetics but also functionality.

• As Machined: The part remains as it came off the machine. Cheapest option, but tool marks are visible. Suitable for internal components.
• Bead Blasting: Glass or ceramic beads are blasted at the part to create a uniform matte texture and erase machining marks.

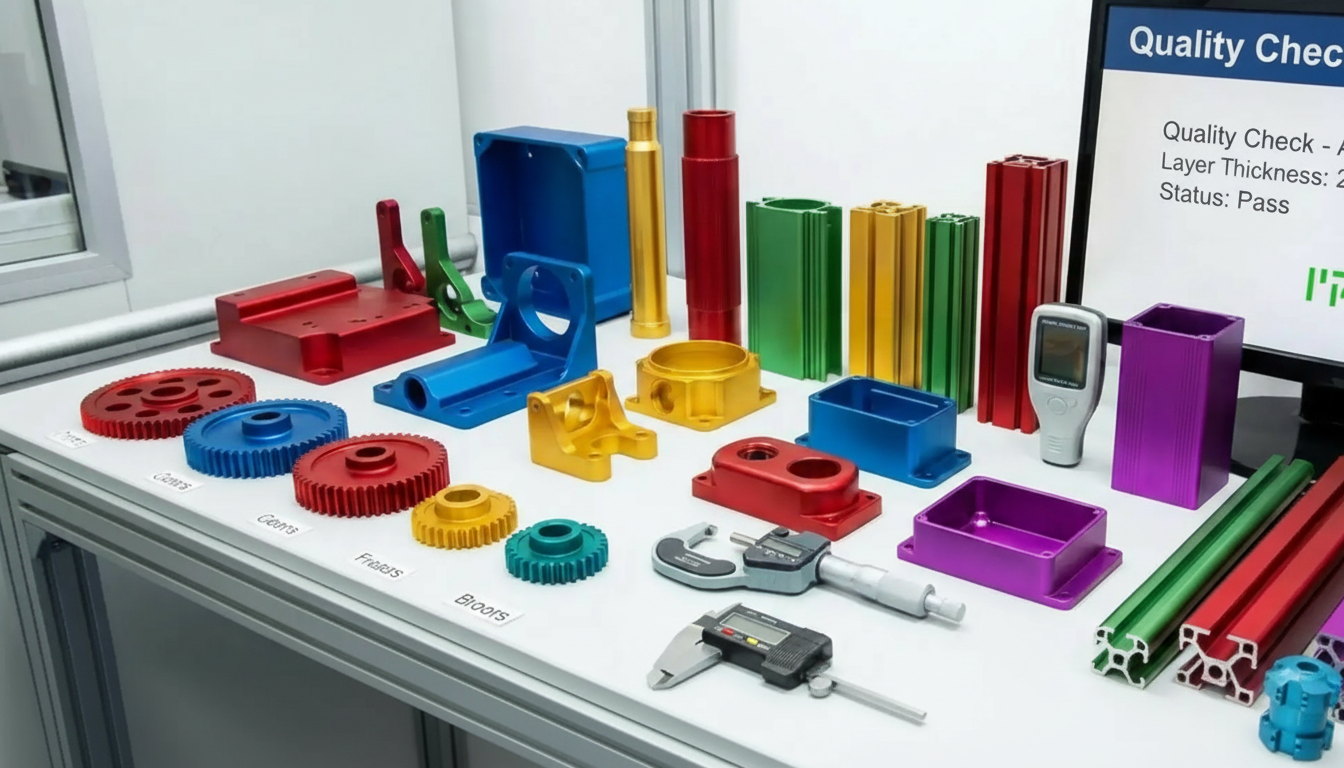

• Anodizing: An electrochemical process that creates an oxide layer protecting against corrosion and enabling coloring. Available as standard (Type II) and hard anodize (Type III) for wear resistance.
• Powder Coating: A highly durable polymer coating, suitable for outdoor products.

From Development to Mass Production

The transition from computer design to physical manufacturing requires a deep understanding of manufacturing limitations (DFM - Design for Manufacturing). We see many entrepreneurs who arrive with designs that are either impossible to manufacture or outrageously expensive without justification. Our role is to optimize the design to suit CNC technologies, select the right material, and manage the supply chain.

A proper workflow includes geometry analysis of the part. For example, avoiding sharp internal corners (which a round mill cannot produce) or designing walls too thin that may vibrate during turning. Ultimately, the secret to success lies in balance - balance between the right material and strength requirements, between precision and cost, and between design and manufacturing capabilities.
